Diffraction imaging
Diffraction imaging for fault detection, fracture characterization, and small-scale feature identification. Advanced seismic imaging technology from Geomage.

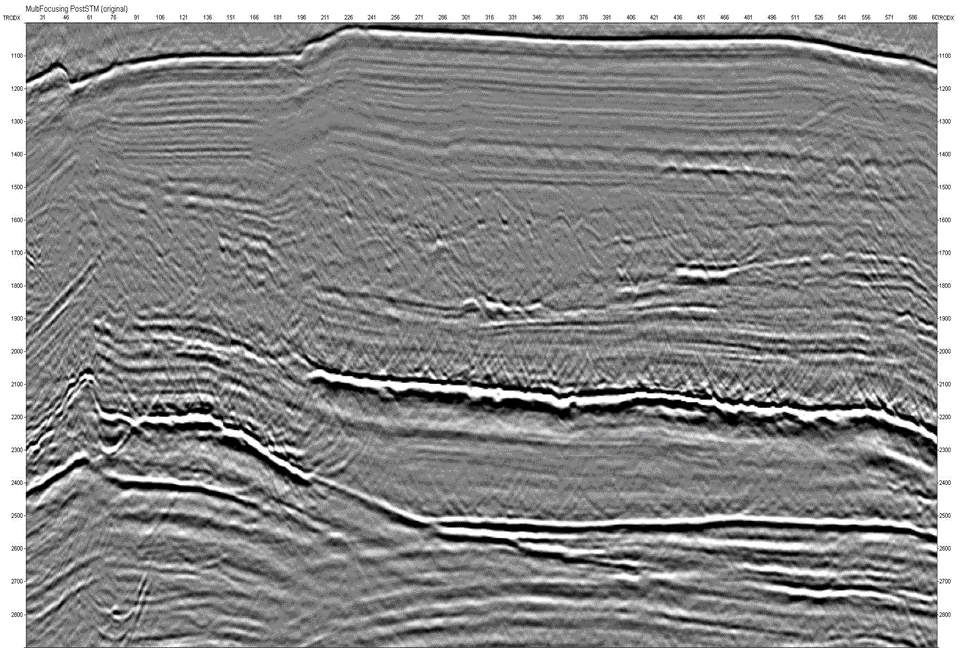

Before

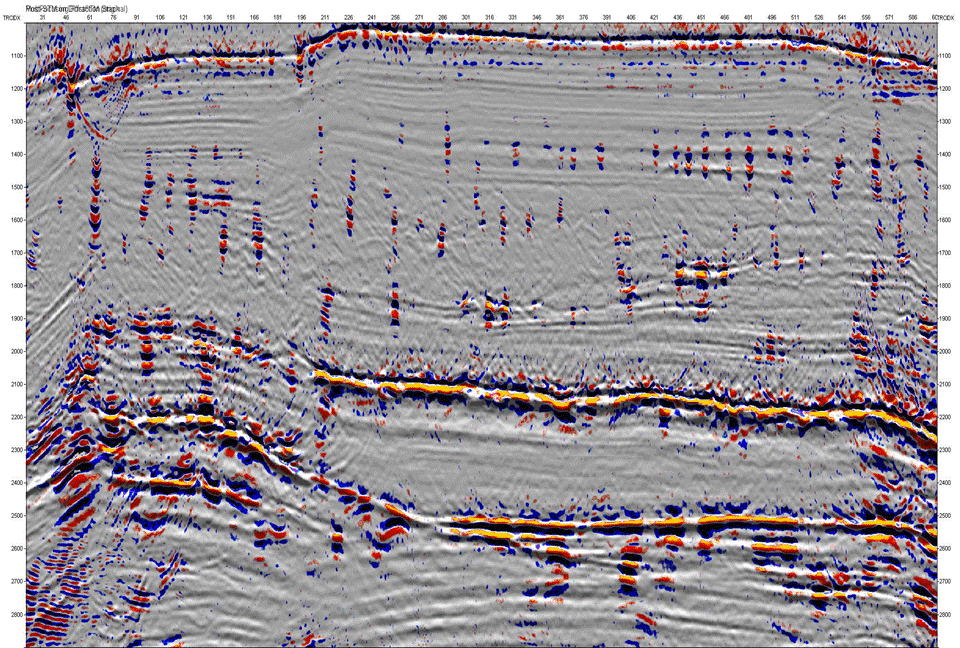

After
MultiFocusing technology allows separation of diffraction and reflection energy. When both, radius of curvature of the wave-front and radius of curvature of reflected surface are equal, we can focus the diffraction location and de-focus reflection energy. This technology called MFDI – Multi Focusing Diffraction Imaging.
MFDI provides a physical attribute showing disturbance in seismic wavefield. Main applications for this attribute are:
- Contour faults and salt bodies
- Locate naturally fractured reservoirs
- Avoid possible unwanted fluid pathways
- Map sources of velocity anisotropy
