The Seismic view is g-Viewer's core display: the whole dataset in one window, wiggle or variable density, with palette, gain, AGC and band-pass applied to what you see rather than to the file — and trace headers drawn above the section where you can read them against the data.

Download free trial See the display options Watch Demos
Whole dataset
In one window, zoom redraws
Wiggle + density
Switch display mode freely
Visual-only
Filters never touch the file

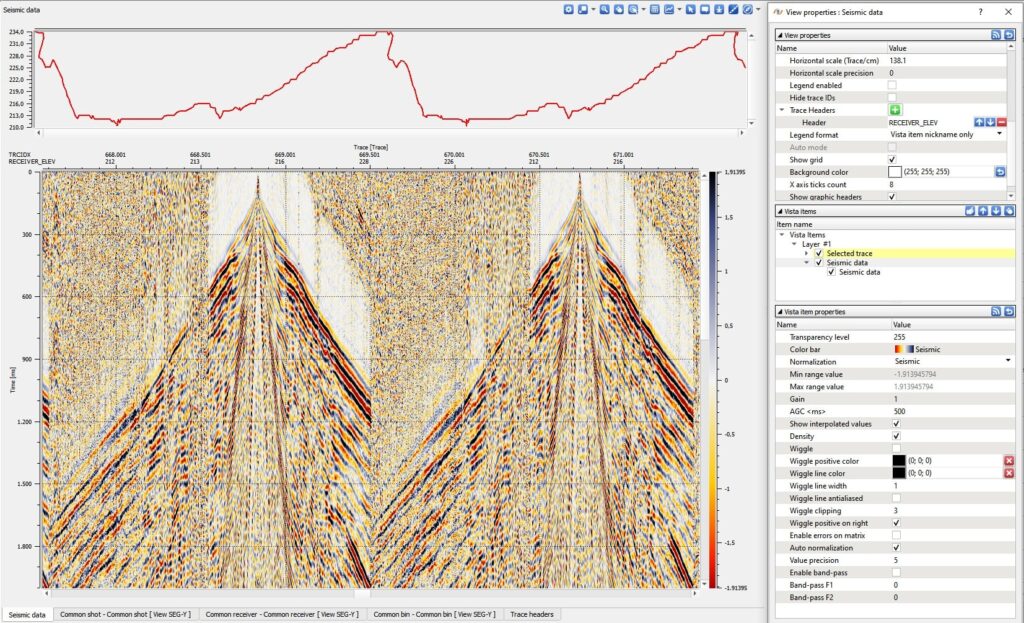

A seismic section in g-Viewer with a receiver-elevation trace-header curve plotted above it and a colour bar on the right
